Wood Chipper, Hydraulic Feed 5″ 3 point mount BX52R
Original price was: $9,430.00.$8,560.00Current price is: $8,560.00.

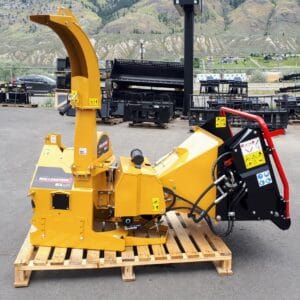

Wood Chipper, Hydraulic Feed 5″ with 3 point mount, Wallenstein
Original price was: $9,430.00.$8,560.00Current price is: $8,560.00.
1 in stock
Description
With a PTO powered rotor and hydraulic feed hopper, branches, limbs and brush up to 5″ in diameter are control fed for continuous chipping at maximum capacity.
Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
| Chipping Capacity: | 5″ (13 cm) |
|---|---|
| On-Board Intelligence: | n/a |
| Chipper Type: | Disc |
| Feed System: | Dual Hydraulic Roller Feed |
| Engine HP Range: | 40 – 55 |
| Required Hydraulic Flow: | 3 – 6 gpm (12 – 23 lpm) |

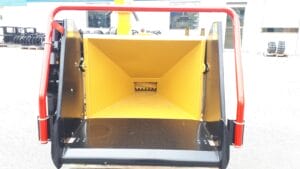

| Chipper Hopper Opening: | 35″ x 30″ (89 cm x 76 cm) |
| Chipper Rotor Opening: | 5″ x 10″ (13 cm x 26 cm) |
| Number Of Chipper Knives: | 4 |
| Rotor Diameter: | 25″ (63 cm) |
| Rotor Weight : | 125 lbs (57 kg) |
| Discharge Chute Height: | 74″ (188 cm) |
| Discharge Chute Rotation: | 360° |
| Drive System: | PTO Direct Drive |
| Rated RPM: | 540 – 1000 |
| PTO Height: | 22″ – 27″ (55 cm – 69 cm) |
| Total Weight: | 845 lbs (384 kg) |
| Dimensions Open (LxWxH): | 80″ x 67″ x 74″ (204 cm x 171 cm x 188 cm) |
| Dimensions Folded (LxWxH): | 62″ x 61″ x 74″ (158 cm x 155 cm x 188 cm) |
| Mounting System: | Cat I, iMatch™ & Quick Hitch Compatible |
Additional information
| Weight | 845 lbs |
|---|
